The automotive tools listed here were made by the Kent-Moore Organization, Inc. of Detroit, Michigan in the 1930s and 40s for service work on General Motors cars and trucks. I am always happy to buy or trade for these or similar Kent-Moore automotive tools made for use on Chevrolet cars and trucks of the 1930s and 40s. I'm easy to work with, open to change, and totally respectful of your personal style. If you have old Kent-Moore automotive tools for sale or trade, please contact me. I look forward to hearing from you. |
|
| |
|
|
| |
Chevrolet Kent-Moore Engine Piston, Connecting Rod Tools Wanted
|
|
| |
| |
|
Tool ID |
|
Description |
| |
|
|
|
|
 |
|
J-794 |
|
Piston Inserter
1936 Passenger Cars and Trucks |
| |
|
|
|
| |
J-975 |
|
Piston Inserter
1937-39 Passenger Cars and Trucks |
|
|
| |
|
|
| |
J-794 and J-975 Piston Inserter
The angular valve construction on 1935 and later models requires a machined resess in the cylinder block. There is danger of chipping the rings against this sharp edge when a piston is inserted with a conventional type inserter. This special inserter is made with a lip that extends into the recess and permits the ring to pass into the cylinder bore without striking the sharp edge. |
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
| |
|
|
|
|
|
|
J-874C |
|
Connecting Rod and Piston Aligner and Reaming Fixture
All Passenger Cars and Trucks—All Years |
| |
|
|
J-874-1 Body |
|
J-874-13 Piston and Wrist Pin Aligning Gauge |
| |
|
|
J-874-3 Adjustable Surface Plate and Wrist Pin Arbor Bearing |
|
J-874-14 1/2 x 1 3/4 HH Cap Screws, 1/2 x 1 HH Cap Screws |
| |
|
|
J-874-4 Knurled Nut |
|
J-874-30 Connecting Rod Arbor—2 1/8"
(For Models to 1937) |
| |
|
|
J-874-5 Large Washer |
|
LU-17 45° Alemite Fitting |
| |
|
|
J-874-6 Connecting Rod Arbor—2" |
|
J-874-37 Connecting Rod Arbor—2 5/16"
(1937-46 Models) |
| |
|
|
J-874-7 Piston Pin Bushing Locating Arbor |
|
J-965-2 Piston Pin Bushing Reamer Pilot Sleeve |
| |
|
|
J-874-11 Piston "V" Block and Piston Reaming |
|
J-965-3 Piston Pin Bushing Expansion Reamer—.865
(1937-46 Models) |
| |
|
|
J-874-12 Connecting Rod Arbor—2 1/8"-2 5/16" |
|
J-965-4 Piston Pin Bushing Expansion Reamer—.9895, .990 (For Models to 1937) |
|
|
|
| |
|
|
| |
J-874C Connecting Rod and Piston Aligner and Reaming Fixture
The connecting rod and piston aligner checks any length or size of connecting rod and piston quickly and accurately. The remarkable features of this aligner are the adjustable surface plate, and facilities for piston reaming. The adjustable surface plate makes possible the checking of any length connecting rod. Merely turning the knurled locking nut instantly makes it possible to adjust the surface plate to any desired position. The piston reamer furnished with the aligner is used with the guide bushing assuring perfect alignment of piston bushings. |
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
| |
|
|
|
|
 |
|
J-965 |
|
Piston Reamer and Fixture
1937-46 Passenger Cars and Trucks
J-965-1 Piston "V" Block
J-965-2 Piston Pin Bushing Reamer Sleeve
J-965-3 Piston Pin Bushing Exp. Reamer—.865
(1937-46 Models)
|
|
|
| |
|
|
| |
J-965 Piston Reamer and Fixture
This fixture consists of a machined "V" block with support base for holding in vise, and a central hole for guiding the reamer. A spiral fluted expansion reamer and a guiding pilot sleeve are used with the fixture. To use the fixture, insert the hardened ground bushing in the central hole in the fixture. Place piston in "V" block and insert pilot end of reamer through the piston bushings and into the bushing in the fixture. This procedure will perfectly line up the piston pin holes true with the reamer. Push the reamer through the piston, removing the amount of stock necessary. (The J-975 Piston Reamer and Fixture is included as part of the J-874C Connecting Rod and Piston Aligner and Reaming Fixture.) |
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
 |
|
|
|
Master Ring
J-984
(1937-46 Passenger Cars and Trucks)
K-913-9 (1933-36 Passenger Cars and Trucks)
216 Cu. In. Engines
The Master Ring is used to set the KMO-913 Cylinder Gauge before measuring the cylinder bore. The inside diameter of the ring corresponds exactly to the standard cylinder bore.
See KMO-913 Cylinder Gauge below.
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
| |
|
|
|
|
 |
|
J-1218 |
|
Piston Vise
All Passenger Cars and Trucks—All Years
J-1218-1 Body
J-1218-2 Piston Vise Jaw
J-1218-3 Screw
J-1218-4 Knob
|
|
|
| |
|
|
| |
J-1218 Piston Vise
The piston vise should always be used when removing piston rings and fitting new rings, pins, and connecting rods. This piston vise, together with the connecting rod and piston aligner, protects the parts and speeds up the operation. |
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
 |
|
KMO-187-1 |
|
Cylinder Head Wrench Attachment
Close Sweep
1934-46 Passenger Cars and Trucks |
| |
|
|
|
| |
KMO-187-10 |
|
Cylinder Head Wrench Attachment
Wide Sweep
1934-46 Passenger Cars and Trucks |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
 |
|
KMO-911 |
|
Connecting Rod Wrench
All Passenger Cars and Trucks—All Years
This wrench is for use on wrist pin lock screws and, as it is a standard size, has many other uses. All steel handle, easy to grip, 9/16" opening, 10" long with "T" handle.
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
| |
|
|
|
|
 |
|

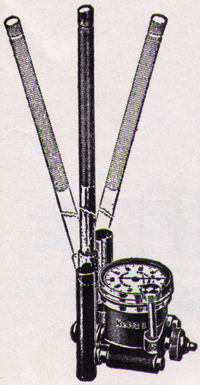

KMO-913 |
|
Cylinder Gauge
All
Passenger Cars and Trucks
This gauge is of rugged construction and has a non-breakable crystal over the dial. The dial is mounted on a block that moves at right angles to the sled. The hardened and ground steel sled has two line contact points that are at all times in alignment with the walls of the cylinder.
Two contact points (hardened), that independently cause the hand to travel over the dial reading in .001 and with a unique double spring action, make the gauge self centering and absolutely non-collapsible. Provisions for diameters varying from 2 1/2" to 6" are made with two adjustable rods. These may be carried in the hollow handle of the gauge.
The dial is graduated to show plus or minus, one turn of the hand being .001. By turning the knurled rim, the dial may be instantly moved to bring the 0 mark to any point desired, in relation to the head.
See J-984 Master Ring (1937-46 Models) and K-913-9 Master Ring (1933-36 Models) above.
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
KMO-990 Piston Reamer
|
|
| |
|
|
| |
KMO-990 Piston Reamer |
|
Sleeve, Adjusting Nut, Nut Collar, Pin |
| |
|
|
Spring, Body, Spindle, Nut, Blades |
|
Expanding Bushing No. 1624 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
 |
|
J-1264 |
|
Tension Indicating Wrench
Range 0-200 foot pounds
1/2" Square Drive, Length 23" |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| |
|
Tool ID |
|
Description |
 |
|
T-3R |
|
Connecting Rod Bending Iron
All Model Passenger Cars and Trucks—All Years |
|
|
| |
|
|
| |
T-3R Connecting Rod Bending Iron
Used as shown for straightening bent or twisted connecting rods. Can also be used for many other purposes around the repair shop. |
|
| |
|
|
| |
|
|
| |
|
|
